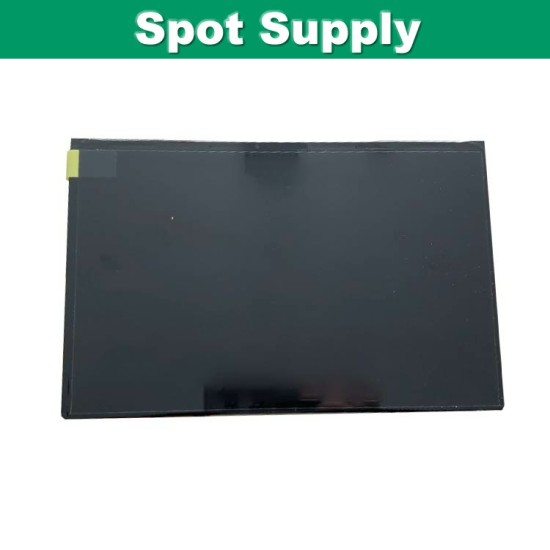

Name: BOE 10.1 Inch 1280x800 WXGA LCD Panel Full View Screen For tablet BP101WX1-206 40 pins LVDS
Brand: BOE
SKU: BP101WX1-206
Price: 999.99 USD
Availability: InStock

BOE 10.1 Inch 1280x800 WXGA LCD Panel Full View Screen For tablet BP101WX1-206 40 pins LVDS

Stock: In Stock
Brand: BOE
Model: BP101WX1-206
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: BP101WX1-206
UPC: BP101WX1-206
JAN: BP101WX1-206
ISBN: BP101WX1-206
MPN: BP101WX1-206

Products Sold: 0

Product Views: 201

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 23

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	BOE
Model Name	BP101WX1-206
Screen Size	10.1 Inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 × 135.60 (H×V)
Outline(mm）	228.6 × 149.2 ×2.39 (H×V×D)
Pixel Pitch(um)	169.5
Treatment	Hard coating (3H)
Luminance	330 cd/m² (Typ.)
Contrast Ratio	600 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (CR≥10) Left / Right/UP /Down
Response time	25 (Typ.)(Tr/Td) ms
Display Mode	ADS,Normally black,Transmissive
Color Depth	16.7M,50% NTSC
Backlight	WLED,15K hours , with LED Driver
Net Weight	150g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit),40 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C)
Package	BOE Original package; 60 pcs/box; weight : 10.87Kgs; size : 520(L) x 420(W) x 260(H)mm
