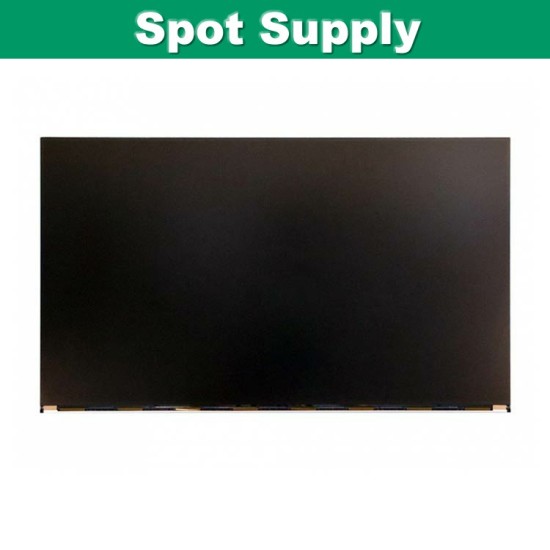

Name: BOE 23.8 Inch HD 1920x1080 LCD Panel TFT LCD IPS Display MV238FHM-N20 250nits and LVDS 30 pins
Brand: BOE
SKU: MV238FHM-N20
Price: 999.99 USD
Availability: InStock

BOE 23.8 Inch HD 1920x1080 LCD Panel TFT LCD IPS Display MV238FHM-N20 250nits and LVDS 30 pins

Stock: In Stock
Brand: BOE
Model: MV238FHM-N20
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: MV238FHM-N20
UPC: MV238FHM-N20
JAN: MV238FHM-N20
ISBN: MV238FHM-N20
MPN: MV238FHM-N20

Products Sold: 0

Product Views: 0

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 33

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Contact our sales team to apply for a discount if your order is in hand. Lowest Prices Quick Delivery!

Manufacturer	BOE
Model Name	MV238FHM-N20
Screen Size	23.8 Inch
Pixel Number	1920(RGB)×1080,FHD
Active Area(mm)	527.04 x 296.46 (H×V)
Outline(mm）	535.0 x 313.0 x 12.2 (H×V×D)
Pixel Pitch(mm)	0.2745 x 0.2745 (H×V)
Treatment	Anti-Glare, 3H
Luminance	250 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	14 (Typ.)(Tr/Td) ms
Display Mode	ADS,Normally black , Transmissive
Color Depth	16.7M,74% NTSC
Backlight	WLED,30K hours , without Driver
Net Weight	2.20Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit),30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C)
Package	BOE Original package; 10 pcs/ctn; size : 613(L) x 306.5(W) x 405(H) mm
