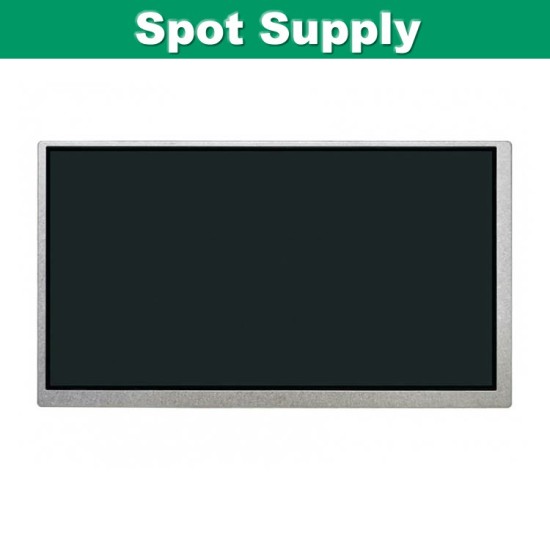

Chimei Innolux 7 inch 800x480 WVGA TFT LCD Panel TTL Screen G070Y3-T01 600nit

Chimei Innolux 7 inch 800x480 WVGA TFT LCD Panel TTL Screen G070Y3-T01 600nit
Chimei Innolux 7 inch 800x480 WVGA TFT LCD Panel TTL Screen G070Y3-T01 600nit
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G070Y3-T01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G070Y3-T01
  • UPC: G070Y3-T01
  • JAN: G070Y3-T01
  • ISBN: G070Y3-T01
  • MPN: G070Y3-T01
Products Sold: 0
Product Views: 242
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 23
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  Innolux
Model Name G070Y3-T01
Screen Size 7 inch
Pixel Number 800(RGB)×480,WVGA
Active Area(mm) 156.0 x 82.8 (H×V)
Outline(mm） 168.0 x 94.0 x 6.35 (H×V×D)
Pixel Pitch(mm) 0.1950 x 0.1725 (H×V)
Treatment
Hard Coating ( 3H ), AG ( Haze 25 % )
Luminance 600 cd/m² (Typ.)
Contrast Ratio 650 : 1 (Typ.) (TM)
Viewing Angle 70/70/60/60(CR≥10) Left / Right/UP /Down
Response time 5/11(Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 262K , 60% NTSC
Backlight WLED,30K hours , without Driver
Net Weight 180g
Touchscreen without
Signal Type/interface Type TTL (1 ch, 6-bit),50 pins,FPC
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -40 ~ +90 (°C)
Operating Temp.: -30 ~ +85 (°C)
Package Innolux Original package;
40 pcs/ctn;
weight : 15.5Kgs;
size : 435(L)mm x 350(W)mm x 265(H)mm
