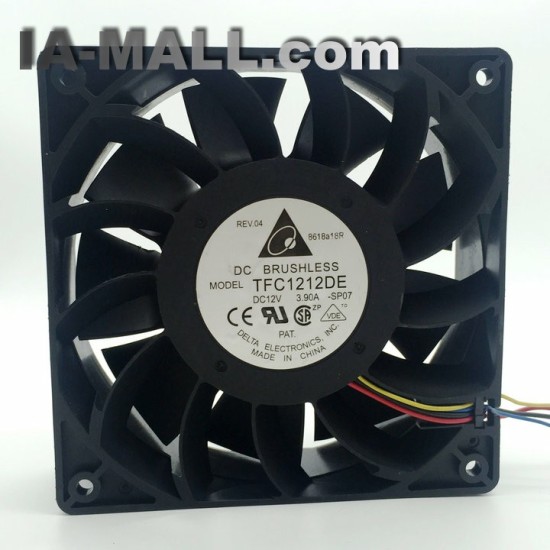

Delta TFC1212DE DC12V 5200RPM 252CFM AXIAL cooling Fan

Delta TFC1212DE DC12V 5200RPM 252CFM AXIAL cooling Fan
Delta TFC1212DE DC12V 5200RPM 252CFM AXIAL cooling Fan
  • Stock: In Stock
  • Brand: DELTA
  • Model: TFC1212DE
  • Weight: 1.00kg
  • Dimensions: 36.00cm x 26.00cm x 9.00cm
  • SKU: TFC1212DE
  • UPC: TFC1212DE
  • JAN: TFC1212DE
  • ISBN: TFC1212DE
  • MPN: TFC1212DE
Products Sold: 0
Product Views: 3
0 reviews - Write a review
$11.99
Ex Tax: $11.99
Price in reward points: 20
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product

Contact our sales team to apply for a discount if your order is in hand. Lowest Prices Quick Delivery!

  • 1x Delta TFC1212DE-PWM, 120x38mm-4pin PWM+Tac Sensor, 252.8 cfm Most Powerful in 120x38mm form factor!
  • This fan is the equivalent spec with,only with PWM control.
  • PWM fan connector you can let your motherboard keep this fan running at minimal speeds and still have the high end for those times when you really need it.

Features :

  • Extreme high airflow and static pressure
  • 4 wire with PWM Control
  • Speed sensor (Tach Out Put)
  • The most powerful in 120x38mm form factor!
  • Note: Please make sure your board can handle the power consume by this fan.

Manufacture / Brand

Delta

Model / Part Number

TFC1212DE-SP07

Size / Dimension

120mm x 120mm x 38mm

Rated Voltage

12 VDC

Rated Current

4.0 Amp

Rated Input Power

– Watt

Fan Speed

5500 R.P.M. (Revolutions per minute)

Maximum Air Flow

252.8 CFM (Cubic feet per minute)

Noise Level

66 dB-A

Maximum Air Pressure

35.88 mmH2O

Bearing Type

Ball

Termination

12? with 4 Wire Leads

Power Connector

4pin

Function/Features

PWM control/Speed Sensor (Tach Out Put)

RoHS Status

RoHS Compliant

Operating Temperature

–

Life Expectancy

–

Data Sheet

Unit Weight

0.66 lb (10.5oz)
