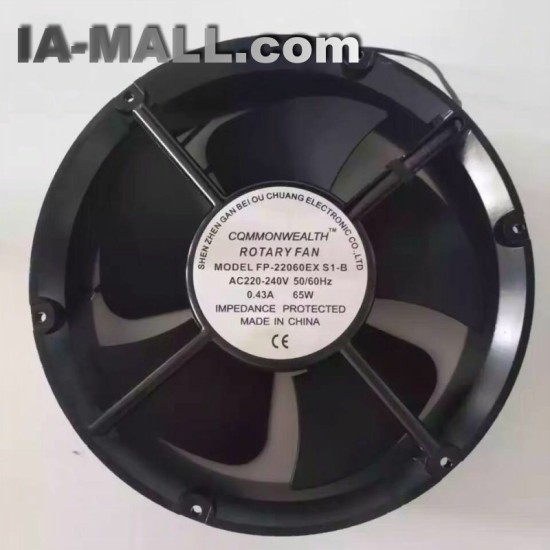

FP-20060EXS1-B AC 110V/220V/380V 65W cooling fan

Model number: FP-20060EX-S1-B
Brand:COMMONWEALTH ROTARY FAN
Size: 200 * 200 * 60mm
Opening 165 * 165
Bearing structure: B: BALL (ball bearing)
Voltage: 220 ～ 240V AC Frequency: 50/60 (Hz)
Power: input 65 (W) output 22W
Speed: 2600 (R / min)
Air volume: 12.00 (M3 / min)
Noise: 70 (dB-A)
  Packing weight: 1500 (g)
Wind blade: one-shot injection molding, PBT + 30% glass line + VO flame retardant;
Bearing: Imported high-precision, long-life and low-noise imported ball bearings;
Insulation: The enameled wire adopts Class B insulation and has a temperature resistance of 120 degrees Celsius;
Insulation resistance: above 500 megohms;
Withstand voltage: leakage current 0.5mA. Withstand voltage 1500V / 1 minute;
Operating voltage: 220V (voltage range: 185V ～ 245V)


Ambient temperature for use (℃): -20 ℃ ～ 75 ℃ B: (ball bearing)
