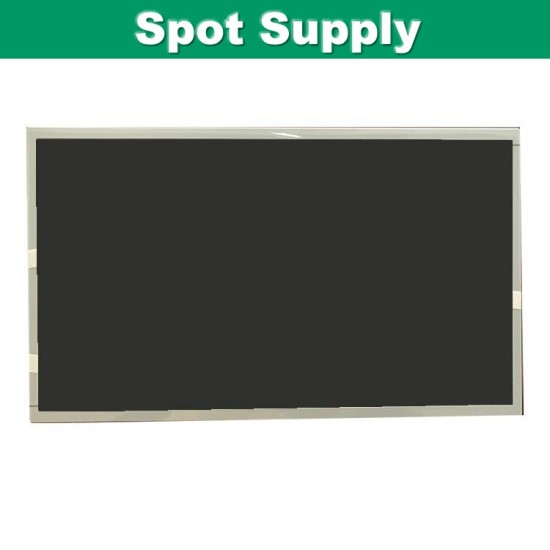

Name: Innolux 18.5 Inch 1366x768 WXGA LCD Panel TFT Display For Industry G185BGE-L01 300nits and LVDS 30 pins
Brand: INNoLux
SKU: G185BGE-L01
Price: 999.99 USD
Availability: InStock

Innolux 18.5 Inch 1366x768 WXGA LCD Panel TFT Display For Industry G185BGE-L01 300nits and LVDS 30 pins

Stock: In Stock
Brand: INNoLux
Model: G185BGE-L01
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: G185BGE-L01
UPC: G185BGE-L01
JAN: G185BGE-L01
ISBN: G185BGE-L01
MPN: G185BGE-L01

Products Sold: 0

Product Views: 158

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 22

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	Innolux
Model Name	G185BGE-L01
Screen Size	18.5 Inch
Pixel Number	1366(RGB)×768,WXGA
Active Area(mm)	408.9 × 230.4 (H×V)
Outline(mm）	4430.37 × 254.6 × 16.1 (H×V×D)
Pixel Pitch(mm)	0.3 ×0.3 (H×V)
Treatment	AG type, 3H hard coating, Haze 25
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (CR≥10) Left / Right/UP /Down
Response time	1.5/3.5 (Typ.)(Tr/Td) ms
Display Mode	TN,Normally white,Transmissive
Color Depth	16.7M,72% NTSC
Backlight	WLED,50K hours, with LED Driver
Net Weight	1.65Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit),30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +60 (°C)
Package	Innolux Original package; 8 pcs/box; weight : 21.0Kgs; size : 525(L) x 284(W) x 360(H)mm
