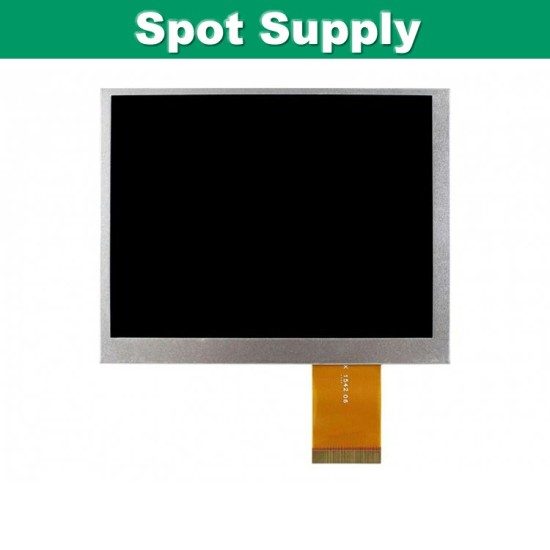

Innolux 5.6 inch 640x480 VGA TFT LCD Panel RGB LCD Screen AT056TN52 V.3 200nits

Innolux 5.6 inch 640x480 VGA TFT LCD Panel RGB LCD Screen AT056TN52 V.3 200nits
Innolux 5.6 inch 640x480 VGA TFT LCD Panel RGB LCD Screen AT056TN52 V.3 200nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: AT056TN52V.3
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: AT056TN52V.3
  • UPC: AT056TN52V.3
  • JAN: AT056TN52V.3
  • ISBN: AT056TN52V.3
  • MPN: AT056TN52V.3
Products Sold: 0
Product Views: 151
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 33
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer Innolux
Model Name AT056TN52 V.3
Screen Size 5.6 inch
Pixel Number 640(RGB)×480,VGA
Active Area(mm) 112.896 (W) x 84.672(H)
Outline(mm） 126.5(W) x 100(H) x 5.7(D)
Dot pitch(mm) 0.0588(W) x 0.1764(H)
Treatment Anti-Glare
Luminance 200 cd/m²
Contrast Ratio 500:1
Viewing Angle R/L/U/D 70/70/50/70(Deg)
Response 10/15ms
Work Mode TN , Normally White,Transmissive
Color Depth 16.7M
Backlight WLED,20k hours,withour driver
operating temperature -20 ~ +70 (°C)
storage temperature -30 ~ +80 (°C)
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 8-bit),FPC,50 pins
Voltage Supply +3.3 V(Typ.)
weight 127.5g
Package Innolux original package;
60 pcs/carton;
Carton size:  530(L) x 355(W) x 255(H)mm;
Weight:  10.306kgs.
