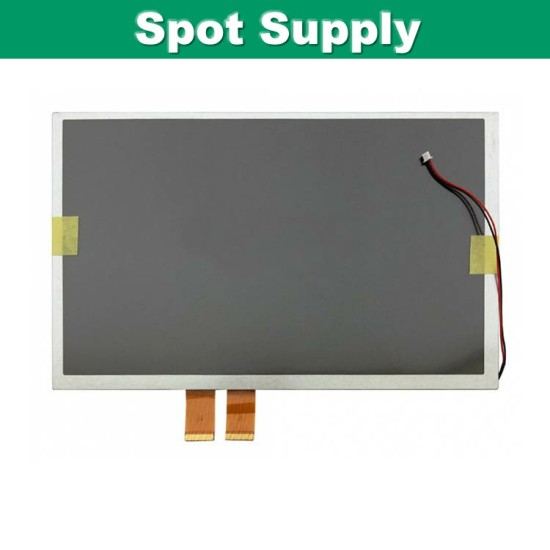

AUO 10.1 Inch 800x480 WVGA LCD Panel TFT RGB LCD Screen For Industry and DVD A101VW01 V3 300nits

AUO 10.1 Inch 800x480 WVGA LCD Panel TFT RGB LCD Screen For Industry and DVD A101VW01 V3 300nits
AUO 10.1 Inch 800x480 WVGA LCD Panel TFT RGB LCD Screen For Industry and DVD A101VW01 V3 300nits
  • Stock: In Stock
  • Brand: AUO
  • Model: A101VW01V3
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: A101VW01V3
  • UPC: A101VW01V3
  • JAN: A101VW01V3
  • ISBN: A101VW01V3
  • MPN: A101VW01V3
Products Sold: 0
Product Views: 168
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 25
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer AUO
Model Name A101VW01 V3 
Screen Size 10.1 inch
Pixel Number 800(RGB)×480,WVGA
Active Area(mm) 219.6 x 131.76 (H×V)
Outline(mm） 235(W) x 145.9(H) x 5.4 (H×V×D)
Bezel Area(mm) 221.6 × 133.76 (H×V)
Treatment
Anti-Glare
Luminance 300 cd/m² (Typ.)
Contrast Ratio 500 : 1 (Typ.) (TM)
Viewing Angle 65/65/45/65 (CR≥10)
Left/Right/UP/Down
Response 12/18(Typ.)(Tr+Td) ms
Work Mode TN,Normally white , Transmissive
Color Depth 262K,48% NTSC
Backlight WLED,20K hours,without LED Driver
Net Weight 315g (Typ.)
Touchscreen without
Signal Type/interface Type Parallel RGB (1 ch, 6-bit),FPC,60 pins
Voltage Supply 3.3/8.8/15/-7.0 V (Typ.)(VCC/AVDD/VGH/VGL)
Max. Ratings Storage Temp.: -20 ~ +70 (°C)
Operating Temp.: -10 ~ +60 (°C)
Package AUO Original package;
20 pcs/ carton;
weight : 10.0Kgs;
size : 520(L) x 340(W) x 250(H)mm
