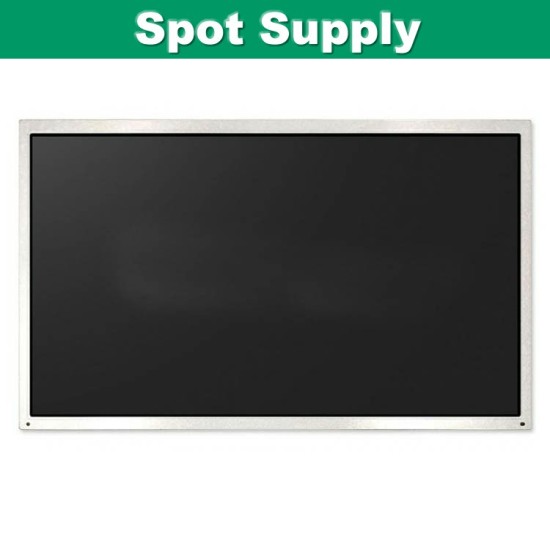

Tianma 15.6 Inch 1920x1080 HD TFT LCD Panel IPS Display P1560FHF1MB00 400nits and LVDS

Tianma 15.6 Inch 1920x1080 HD TFT LCD Panel IPS Display P1560FHF1MB00 400nits and LVDS
Tianma 15.6 Inch 1920x1080 HD TFT LCD Panel IPS Display P1560FHF1MB00 400nits and LVDS
  • Stock: In Stock
  • Brand: INNoLux
  • Model: P1560FHF1MB00
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: P1560FHF1MB00
  • UPC: P1560FHF1MB0
  • JAN: P1560FHF1MB00
  • ISBN: P1560FHF1MB00
  • MPN: P1560FHF1MB00
Products Sold: 0
Product Views: 206
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 33
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  TIANMA
Model Name P1560FHF1MB00
Screen Size 15.6 inch
Pixel Number 1920(RGB)×1080,FHD
Active Area(mm) 344.16 x 193.59 (H×V)
Outline(mm） 363.8 x 215.9 (H×V)
Pixel Pitch(mm) 0.17925 x 0.17925 (H×V)
Treatment Hard coating (3H)
Luminance 400 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
Response time 12/13 (Typ.)(Tr/Td) ms
Display Mode SFT,Normally black , Transmissive
Color Depth 16.7M
Backlight WLED , with LED Driver
Net Weight TBD
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 8-bit)
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +80 (°C)
Operating Temp.: -20 ~ +70 (°C)
Package TIANMA Original package
