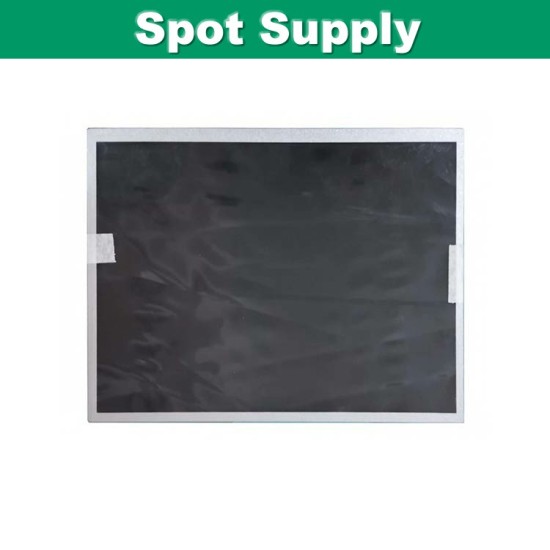

Innolux 12.1 Inch 1024x768 TFT LCD Panel IPS Display G121XCE-L02 500nit and LVDS 20 pins

Innolux 12.1 Inch 1024x768 TFT LCD Panel IPS Display G121XCE-L02 500nit and LVDS 20 pins
Innolux 12.1 Inch 1024x768 TFT LCD Panel IPS Display G121XCE-L02 500nit and LVDS 20 pins
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G121XCE-L02
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G121XCE-L02
  • UPC: G121XCE-L02
  • JAN: G121XCE-L02
  • ISBN: G121XCE-L02
  • MPN: G121XCE-L02
Products Sold: 0
Product Views: 122
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 21
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer Innolux
Model Name G121XCE-L02
Screen Size 12.1 inch
Pixel Number 1024(RGB)×768,XGA
Active Area(mm) 245.76 x 184.32 (HxV)
Outline(mm） 260.5(W) x 204.0(V) x 8.4(D)mm
Bezel Area(mm) 269.12 x 173 (HxV)
Treatment Hard coating (3H),Anti-Glare
Luminance 500 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
Response 13/12 (Typ.)(Tr+Td) ms
Work Mode AAS,Normally black,Transmissive
Color Depth 262K/16.2M,72% NTSC
Backlight WLED,50K hours,With LED Driver
Net Weight 510g
operating frequency 60Hz
Touchscreen Without, RTP+CTP for options
Signal Type/interface Type LVDS(1 ch, 8 bit),20 pins,connector
Voltage Supply +3.3 V (Typ.)
Temperature Storage Temp.: -40 ~ +80 (°C)
Operating Temp.: -30 ~ +70 (°C)
Package Innolux Original Package;
18 pcs/ctn;
weight : 10.9Kgs;
size : 465 (L)mm x 362 (W)mm x 314 (H)mm
