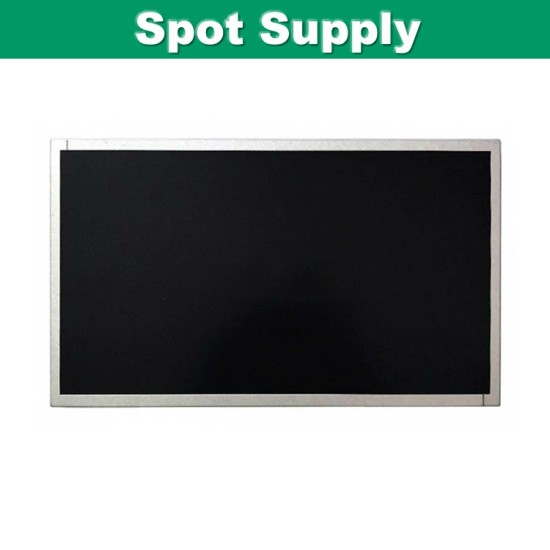

Innolux 15 Inch 1366x768 WXGA TFT LCD Panel LVDS Display For Industry G156BGE-L03 500nits

Innolux 15 Inch 1366x768 WXGA TFT LCD Panel LVDS Display For Industry G156BGE-L03 500nits
Innolux 15 Inch 1366x768 WXGA TFT LCD Panel LVDS Display For Industry G156BGE-L03 500nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G156BGE-L03
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G156BGE-L03
  • UPC: G156BGE-L03
  • JAN: G156BGE-L03
  • ISBN: G156BGE-L03
  • MPN: G156BGE-L03
Products Sold: 0
Product Views: 133
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 33
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  INNOLUX
Model Name G156BGE-L03
Screen Size 15.6 inch
Pixel Number 1366(RGB)×768,WXGA
Active Area(mm) 344.232 x 193.536 (H×V)
Outline(mm） 363.8 x 215.98 x 9.3 (H×V×D)
Pixel Pitch(mm) 0.252 x 0.252 (H×V)
Treatment
AG type, 3H hard coating
Luminance 500 cd/m² (Typ.)
Contrast Ratio 600 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
Response time 3/8 (Typ.)(Tr/Td) ms
Display Mode TN,Normally white,Transmissive
Color Depth 16.7M,63% NTSC
Backlight WLED,50K hours , with LED Driver
Net Weight 755g
Touchscreen without
Signal Type/interface Type LVDS (1 ch, 8-bit),30 pins
Voltage Supply +5.0 V
Max. Ratings Storage Temp.: -20 ~ +60 (°C)
Operating Temp.: -10 ~ +60 (°C)
Package Innolux Original package;
13 pcs/ctn;
weight : 12.0Kgs;
size : 465 (L) x 362 (W) x 314 (H) mm
