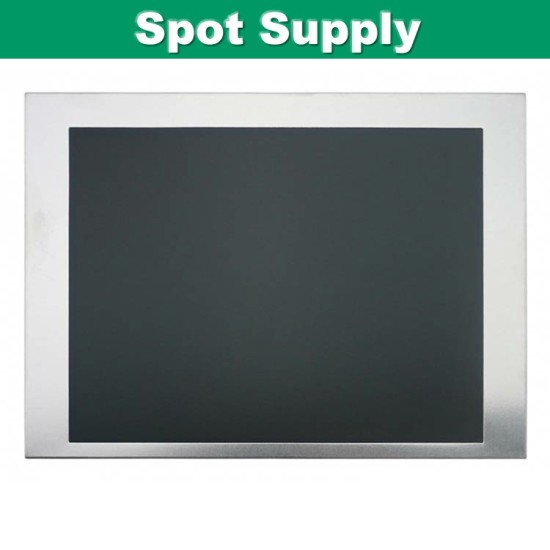

Innolux 5.7 inch 640x480 VGA TFT LCD Screen TTL Panel G057VGE-T01 450nits

Innolux 5.7 inch 640x480 VGA TFT LCD Screen TTL Panel G057VGE-T01 450nits
Innolux 5.7 inch 640x480 VGA TFT LCD Screen TTL Panel G057VGE-T01 450nits
  • Stock: In Stock
  • Brand: INNoLux
  • Model: G057VGE-T01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: G057VGE-T01
  • UPC: G057VGE-T01
  • JAN: G057VGE-T01
  • ISBN: G057VGE-T01
  • MPN: G057VGE-T01
Products Sold: 0
Product Views: 141
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 31
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  INNOLUX
Model Name G057VGE-T01
Screen Size 5.7 inch
Pixel Number 640(RGB)×480,VGA
Active Area(mm) 115.2 x 86.4 (H×V)
Outline(mm） 144.0 x 104.6 x 12.3 (H×V×D)
Pixel Pitch(mm) 0.18 x 0.18 (H×V)
Treatment
Anti-Glare ,coating (Haze 25)
Luminance 450 cd/m² (Typ.)
Contrast Ratio 800 : 1 (Typ.) (TM)
Viewing Angle 80/80/70/70(CR≥10) Left / Right/UP /Down
Response 15/35 (Typ.)(Tr/Td) ms
Work Mode TN,Normally white,Transmissive
Color Depth 262K , 54% NTSC
Backlight WLED, 50K hours, with LED Driver
Net Weight 170g
Touchscreen without
Signal Type/interface Type TTL (1 ch, 6-bit) ,33 pins
Voltage Supply +3.3 V
Max. Ratings Storage Temp.: -30 ~ +85 (°C)
Operating Temp.: -30 ~ +85 (°C)
Package Innolux original package;
60 pcs/box;
weight : 30.0Kgs;
size : 540(L) x 450(W)  x 275(H)mm
