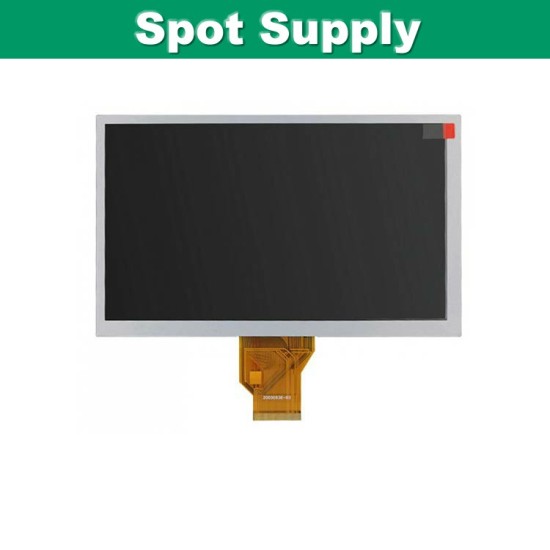

Name: Innolux 8 inch 800x480 TFT LCD Panel RGB LCD Screen AT080TN64 FPC 50pins
Brand: INNoLux
SKU: AT080TN64
Price: 999.99 USD
Availability: InStock

Innolux 8 inch 800x480 TFT LCD Panel RGB LCD Screen AT080TN64 FPC 50pins

Stock: In Stock
Brand: INNoLux
Model: AT080TN64
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: AT080TN64
UPC: AT080TN64
JAN: AT080TN64
ISBN: AT080TN64
MPN: AT080TN64

Products Sold: 0

Product Views: 202

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 30

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	INNOLUX
Model Name	AT080TN64
Screen Size	8 inch
Pixel Number	800(RGB)×480,WVGA
Active Area(mm)	176.64 x 99.36 (W×H)
Outline(mm）	192.8 x 116.9 x 6.4 (W×H×D)
Pixel Pitch(mm)	0.0736 x 0.2070 (W×H)
Treatment	Anti-Glare
Luminance	450 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70(CR≥10) Left / Right/UP /Down
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN,Normally white, Transmissive
Color Depth	262K/16.7M,50% NTSC
Backlight	WLED,20K hours, without Driver
Net Weight	245g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6/8-bit),FPC,50 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C)
Package	Innolux original package; 30 pcs/ctn; weight : 9.8Kgs; size : 530(L)mm x 355(W)mm x 255(H)mm
