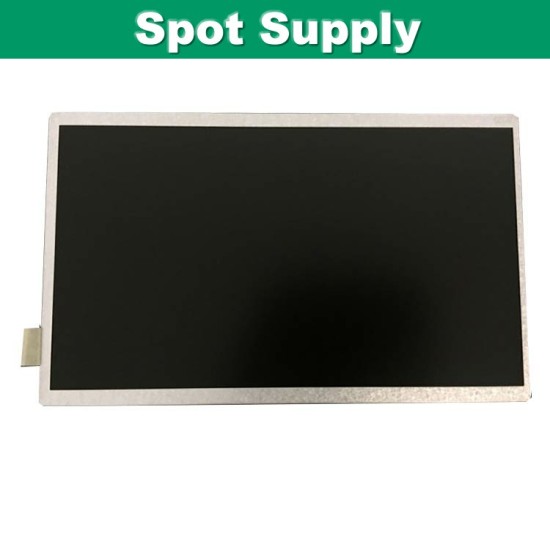

Name: TIANMA 10.1 inch 1280x800 TFT LCD IPS Panel TM101JDHG33 with 900nits High Brightness
SKU: TM101JDHG33
Price: 999.99 USD
Availability: InStock

TIANMA 10.1 inch 1280x800 TFT LCD IPS Panel TM101JDHG33 with 900nits High Brightness

Stock: In Stock
Model: TM101JDHG33
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: TM101JDHG33
UPC: TM101JDHG33
JAN: TM101JDHG33
ISBN: TM101JDHG33
MPN: TM101JDHG33

Products Sold: 0

Product Views: 189

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 29

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	TIANMA
Model Name	TM101JDHG33
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	229.80 x 149.0 x 6.2 (H×V×D)
Pixel pitch(mm)	0.1695 x 0.1695 (H×V)
Treatment	HC
Luminance	900 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response	25 (Typ.)(Tr/Td) ms
Work Mode	SFT,Normally black, Transmissive
Color Depth	262K/16.7M,50% NTSC
Backlight	WLED,40K hours, with LED Driver
Net Weight	280g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),40 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -40 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C)
Package	TIANAM Original Package; 18 pcs/ctn; weight : 10.2Kgs; size : 544(L)mm x 365(W)mm × 250(H)mm
