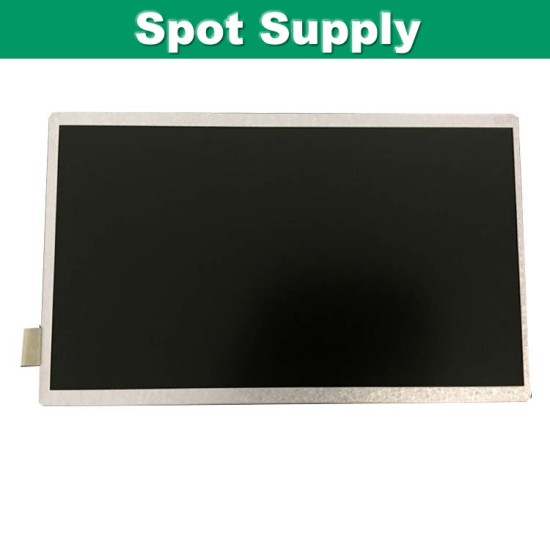

Name: TIANMA 10.1 inch 1280x800 TFT LCD IPS Screen TM101JDHG38 with LVDS 40 pin and 400 nit
SKU: TM101JDHG38
Price: 999.99 USD
Availability: InStock

TIANMA 10.1 inch 1280x800 TFT LCD IPS Screen TM101JDHG38 with LVDS 40 pin and 400 nit

Stock: In Stock
Model: TM101JDHG38
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: TM101JDHG38
UPC: TM101JDHG38
JAN: TM101JDHG38
ISBN: TM101JDHG38
MPN: TM101JDHG38

Products Sold: 0

Product Views: 238

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 32

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	TIANMA
Model Name	TM101JDHG38
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800,WXGA
Active Area(mm)	216.96 x 135.60 (H×V)
Outline(mm）	231.22 x 150.60 x 4.4 (H×V×D)
Pixel pitch (mm)	0.1695 x 0.1695 (H×V)
Treatment	HC
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85(CR≥10) Left / Right/UP /Down
Response	25 (Typ.)(Tr/Td) ms
Work Mode	SFT,Normally black, Transmissive
Color Depth	262K/16.7M,50% NTSC
Backlight	WLED,30K hours,with LED Driver
Net Weight	276g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),40 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA Original Package; 19 pcs/ctn; weight : 8.3Kgs; size : 544(L)mm x 365(W)mm x 250(H)mm
