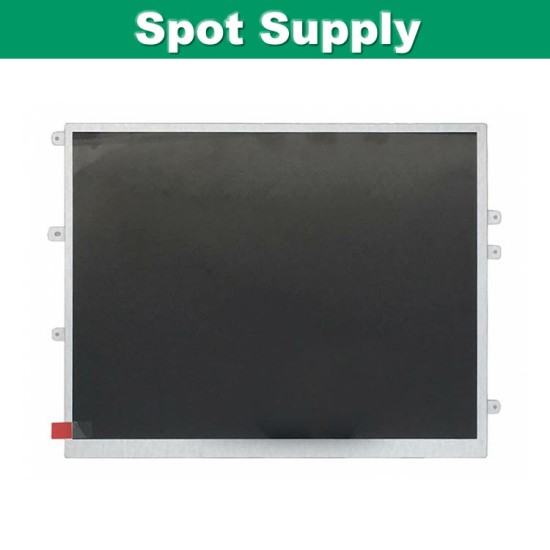

Name: TIANMA 9.7 inch 1024x768 TFT LCD Screen TM097TDHG04-00 with 350 nits and LVDS
SKU: TM097TDHG04-00
Price: 999.99 USD
Availability: InStock

TIANMA 9.7 inch 1024x768 TFT LCD Screen TM097TDHG04-00 with 350 nits and LVDS

Stock: In Stock
Model: TM097TDHG04-00
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: TM097TDHG04-00
UPC: TM097TDHG04-
JAN: TM097TDHG04-0
ISBN: TM097TDHG04-00
MPN: TM097TDHG04-00

Products Sold: 0

Product Views: 0

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 28

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Contact our sales team to apply for a discount if your order is in hand. Lowest Prices Quick Delivery!

Manufacturer	TIANMA
Model Name	TM097TDHG04-00
Screen Size	9.7 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	196.61 x 147.46 (H×V)
Outline(mm）	210.2 x 166.30 x 3.28 (H×V×D)
Pixel Pitch(mm)	0.192 (H) x 0.192 (V)
Treatment	Clear
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70(CR≥10) Left / Right/UP /Down
Response	20/25(Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K , 50% NTSC
Backlight	WLED, 30K hours,without driver
Net Weight	200g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6-bit),30 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package; 60 pcs/ctn; weight : 19.27Kgs; size : 565(L)mm x 483(W)mm x 312(H)mm
