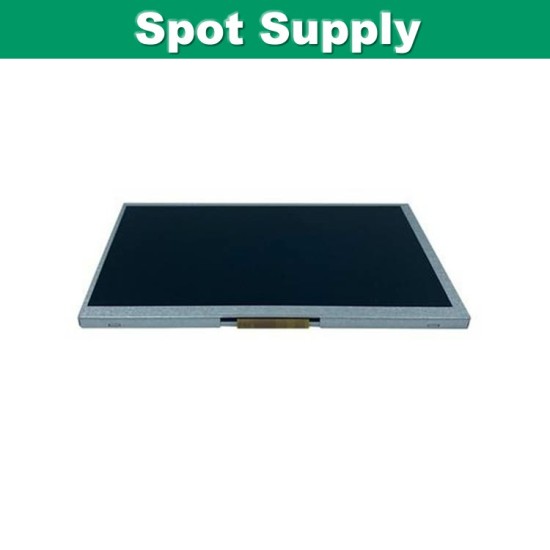

Name: TIANMA 9 inch 1024x600 TFT LCD Panel TM090DDSG01 with 500 nits and LVDS FPC 40 pins
SKU: TM090DDSG01
Price: 999.99 USD
Availability: InStock

TIANMA 9 inch 1024x600 TFT LCD Panel TM090DDSG01 with 500 nits and LVDS FPC 40 pins

Stock: In Stock
Model: TM090DDSG01
Weight: 0.75kg
Dimensions: 32.00cm x 22.00cm x 9.00cm
SKU: TM090DDSG01
UPC: TM090DDSG01
JAN: TM090DDSG01
ISBN: TM090DDSG01
MPN: TM090DDSG01

Products Sold: 0

Product Views: 190

0 reviews - Write a review

$999.99

Ex Tax: $999.99

Price in reward points: 21

Qty

Add to Cart

Buy Now Ask Question

Add to Wish List Compare this Product

Manufacturer	TIANMA
Model Name	TM090DDSG01
Screen Size	9 inch
Pixel Number	1024(RGB)×600,WSVGA
Active Area(mm)	196.608 x 114.15 (H×V)
Outline(mm）	211.1 x 126.5 x 5.7 (H×V×D)
Pixel Pitch(mm)	0.192 x 0.19025 (H×V)
Treatment	Anti-Glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70(CR≥10) Left / Right/UP /Down
Response	25 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K/16.7M,50% NTSC
Backlight	WLED, 10K hours,without driver
Net Weight	TBD
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit),FPC,40 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package; 50 pcs/ctn; size : 530(L)mm x 350(W)mm x 288(H)mm
