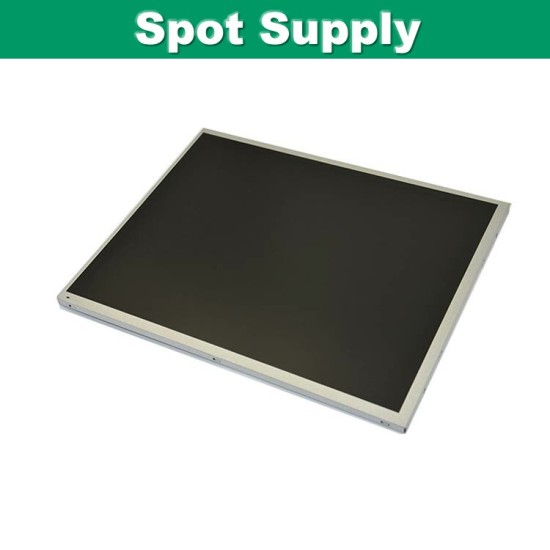

TIANMA 15 inch 1600x1200 TFT LCD LVDS Display Panel TM150XDHG01 with high brightness 1000 nits

TIANMA 15 inch 1600x1200 TFT LCD LVDS Display Panel TM150XDHG01 with high brightness 1000 nits
TIANMA 15 inch 1600x1200 TFT LCD LVDS Display Panel TM150XDHG01 with high brightness 1000 nits
  • Stock: In Stock
  • Model: TM150XDHG01
  • Weight: 0.75kg
  • Dimensions: 32.00cm x 22.00cm x 9.00cm
  • SKU: TM150XDHG01
  • UPC: TM150XDHG01
  • JAN: TM150XDHG01
  • ISBN: TM150XDHG01
  • MPN: TM150XDHG01
Products Sold: 0
Product Views: 139
0 reviews - Write a review
$999.99
Ex Tax: $999.99
Price in reward points: 21
Add to Cart
Buy Now Ask Question
Add to Wish List Compare this Product
Manufacturer  TIANMA
Model Name TM150XDHG01
Screen Size 15 inch
Pixel Number 1600(RGB)×1200,UXGA
Active Area(mm) 304.8 x 228.6 (H×V)
Outline(mm） 318.7 x 242.65 x 6.5 (H×V×D)
Pixel pitch(mm)
 0.1905 x 0.1905 (H×V)
Treatment
Anti-Glare
Luminance 1000 cd/m² (Typ.)
Contrast Ratio 1000 : 1 (Typ.) (TM)
Viewing Angle 80/80/80/80(CR≥10) Left / Right/UP /Down
Response 20 (Typ.)(Tr/Td) ms
Work Mode TN,Normally white, Transmissive
Color Depth 262K , 50% NTSC
Backlight WLED,30K hours, with LED Driver
Net Weight 620g
Touchscreen without
Signal Type/interface Type LVDS (2 ch, 6-bit),30 pins
Voltage Supply 3.3V
Max. Ratings Storage Temp.: -40 ~ +80 (°C)
Operating Temp.: -30 ~ +70 (°C)
Package TIANMA Original Package;
15 pcs/ctn;
weight : 12.753Kgs;
size : 520(L)mm x 435(W)mm x 330(H)mm
